Description

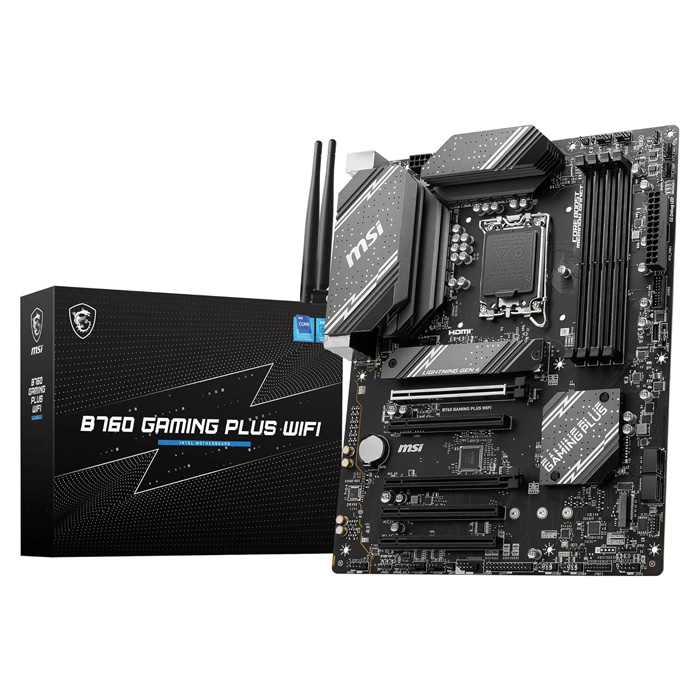

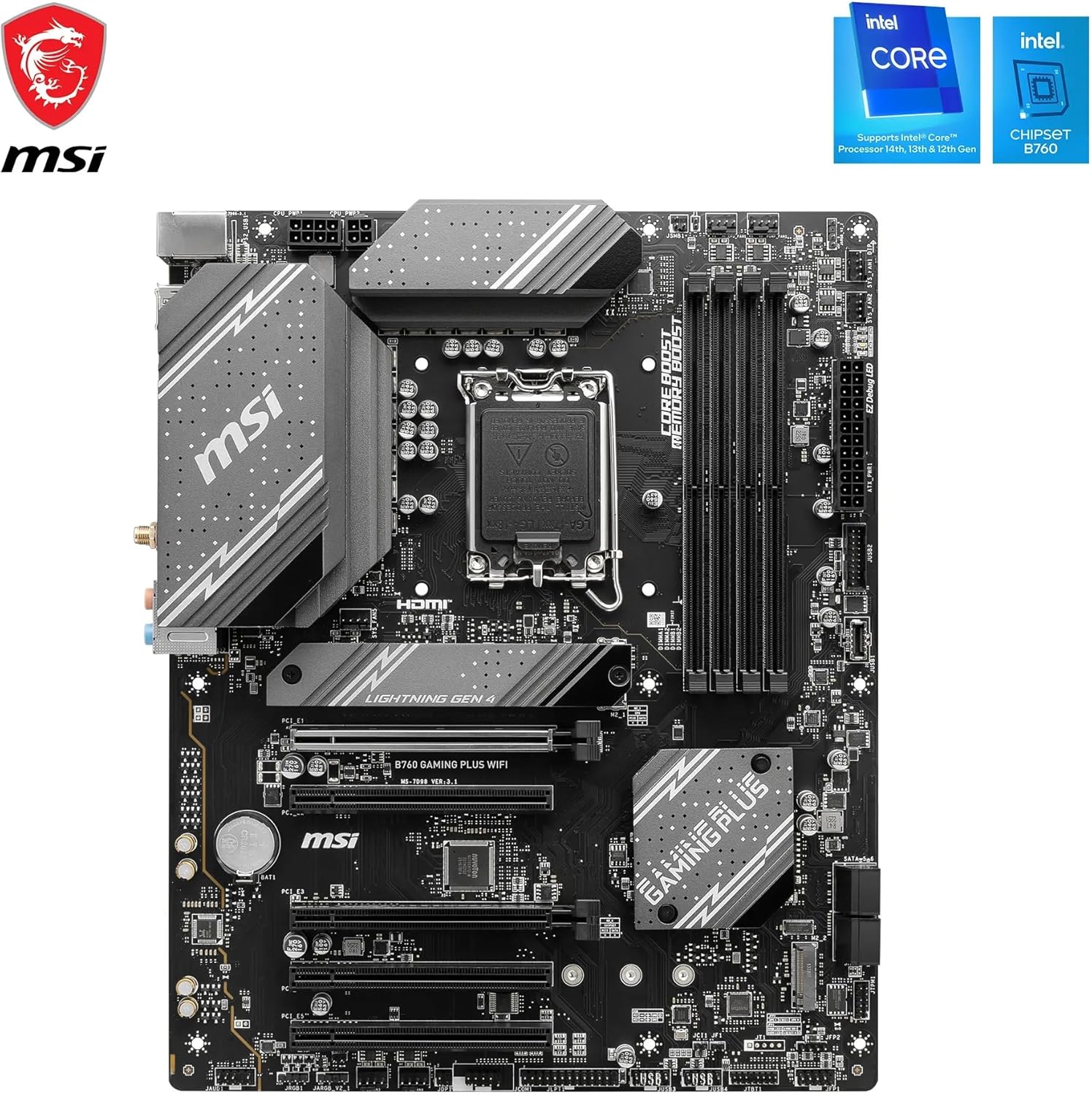

• 14TH, 13TH & 12TH GEN CORE – The B760 GAMING PLUS WIFI (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B760 chipset (LGA 1700, 14th, 13th & 12th Gen); The VRM features MSI Core Boost technology for improved stability & performance

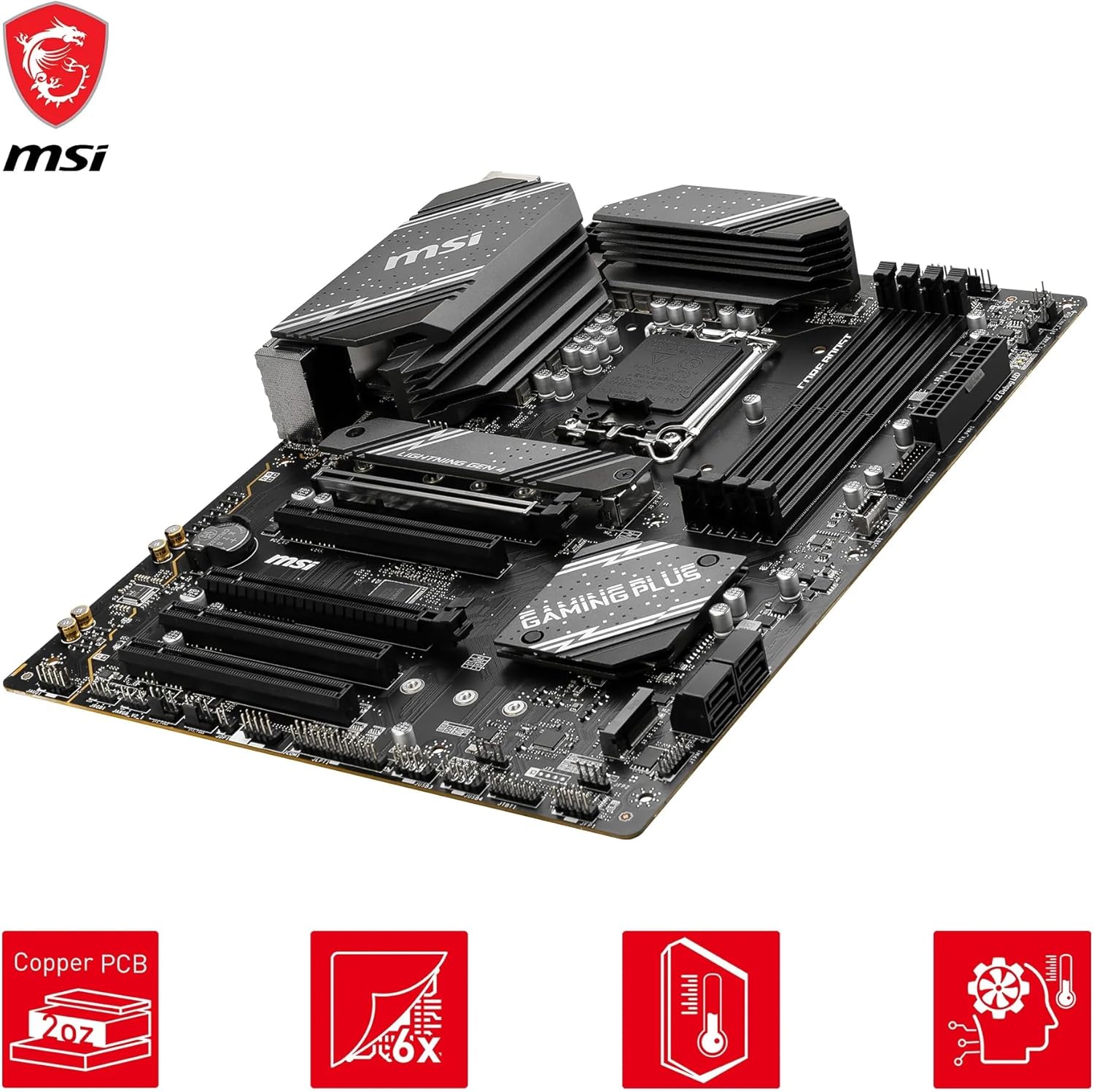

• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper

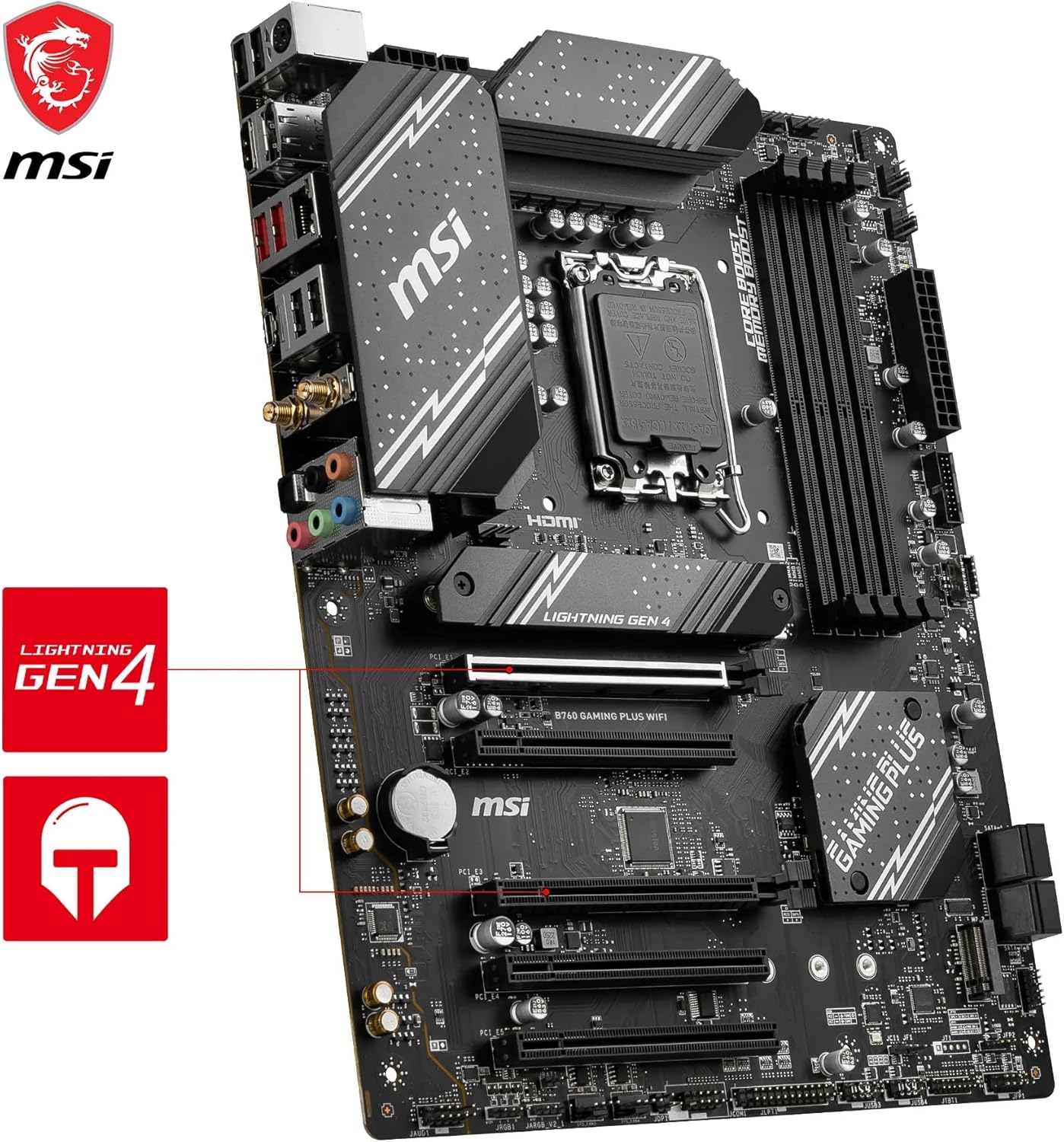

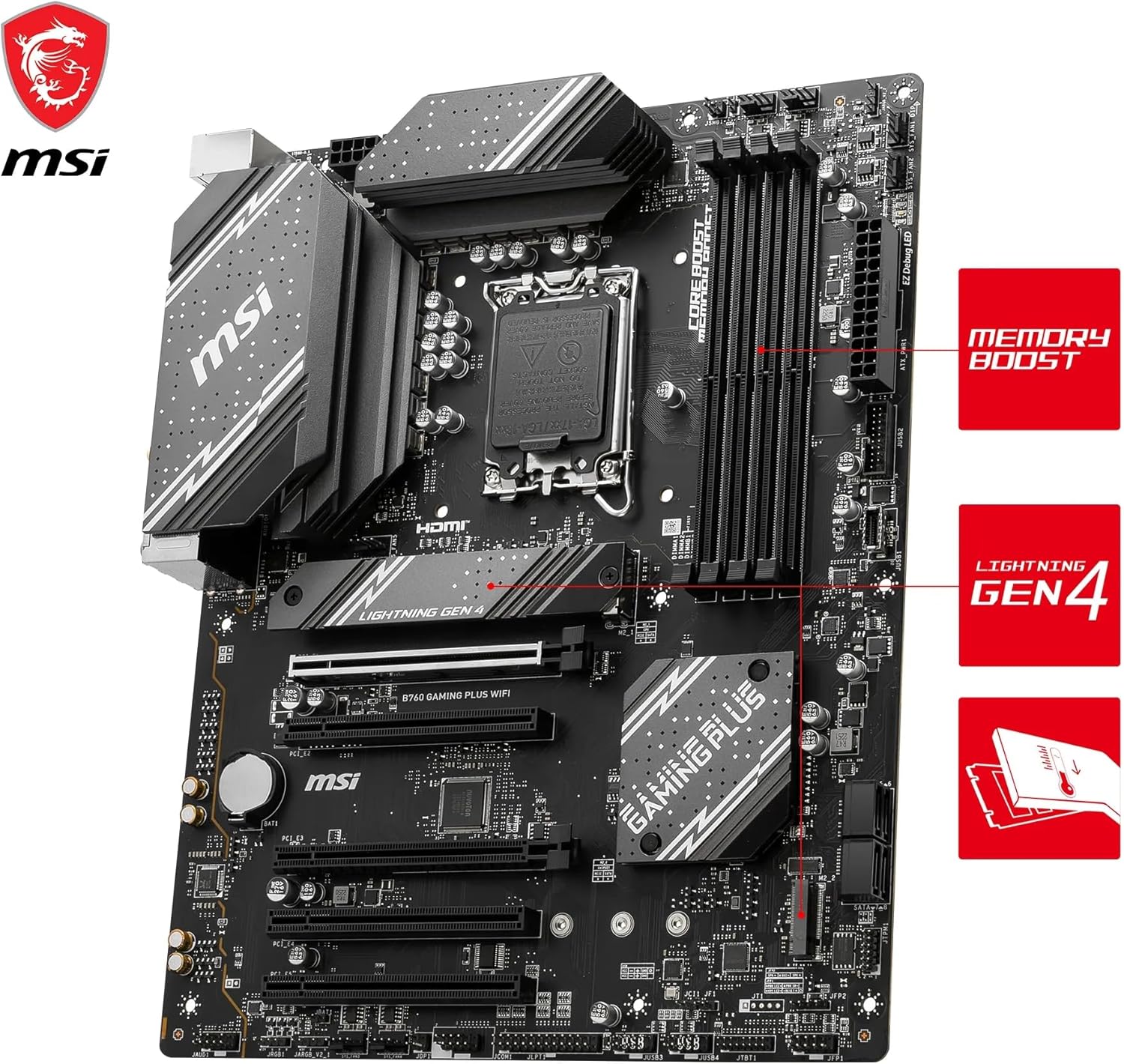

• DDR5 MEMORY, DUAL PCIe 4.0 x16 SLOTS – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) supports graphics cards, primary PCIe x16 slot includes Steel Armor
• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr on the primary slot to prevent thermal throttling during hyper-fast SSD access

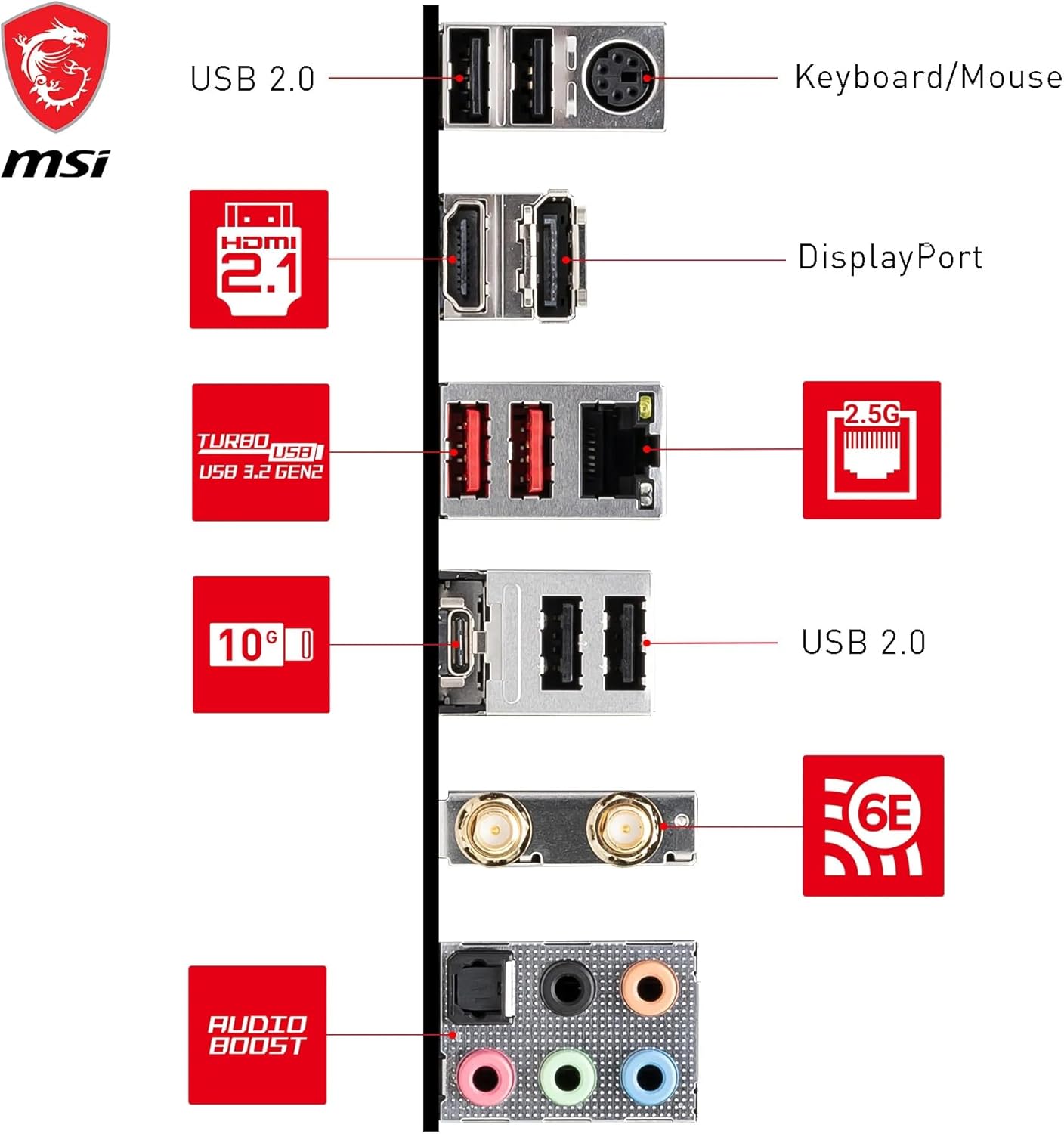

• WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C & Type-A (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
